abstract.
This lab involves using SPICE and MatLab® to analyze various circuits. Basically, it shows how much easier it is to use SPiCE to perform circuit analysis than modified nodal analysis using MatLab® even though both give yield the same results.
task 1

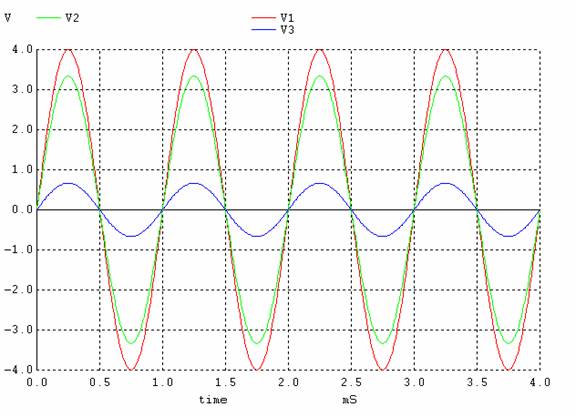

SPICE ANALYSIS
* Control section determines type of analysis
.control
destroy all
echo
TRAN 0.01m 4m
plot V1 V2 V3
.endc
*These next lines give circuit layout (netlist)
R3 V3 0 1k
R2 v2 v3 4k
R1 v1 v2 1k
VVin v1 0 SIN(0 4 1k 0 0)
.end

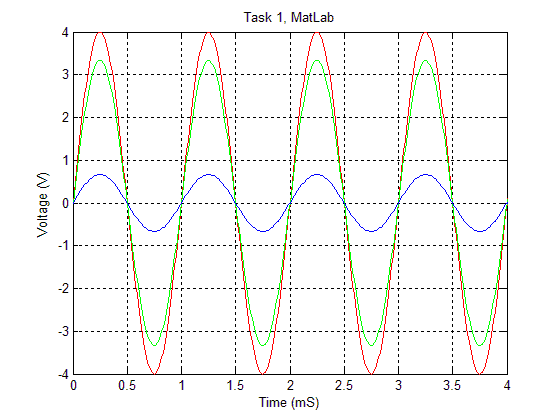

MATLAB ANALYSIS
[ click here for the m-file. ]
task 2

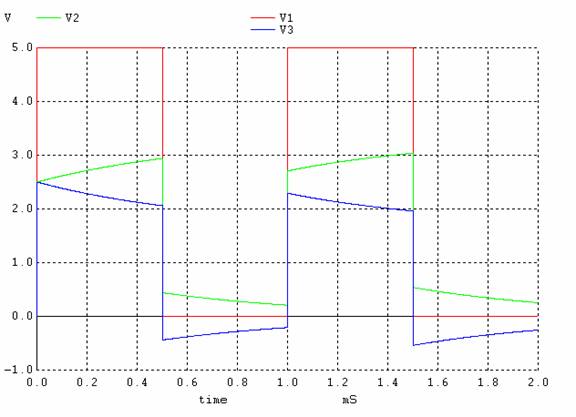

SPICE ANALYSIS
.control
destroy all
echo
TRAN 0.001m 2m
plot V1 V2 V3
.endc
*These next lines give circuit layout (netlist)
R3 V3 0 1k
R2 v2 v3 1k
C1 v2 v3 1u
R1 v1 v2 1k
VVin v1 0 PULSE(0 5 0 0 0 0.0005 .001)
.end

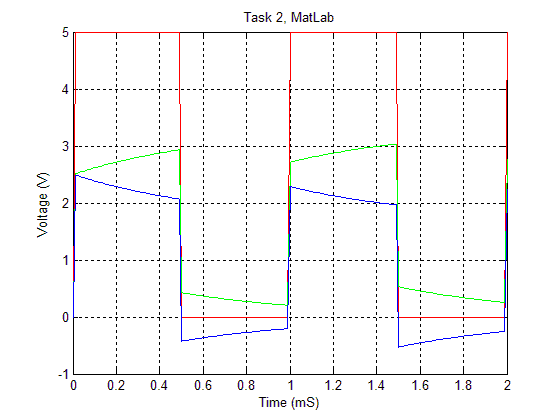

MATLAB ANALYSIS
[ click here for the m-file. ]

task 3

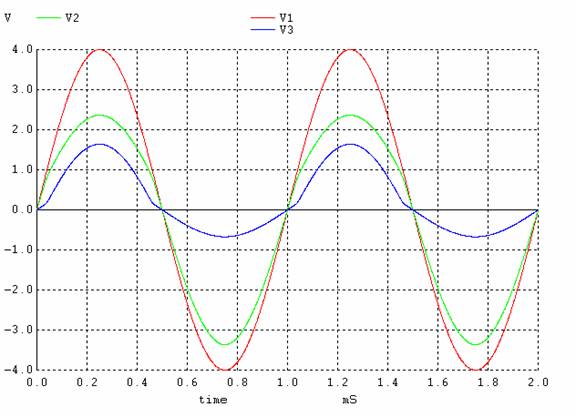

SPICE ANALYSIS
.control
destroy all
echo
TRAN 0.001m 2m
plot V1 V2 V3
.endc
*These next lines give circuit layout (netlist)
R3 V3 0 1k
R2 v2 v3 4k
R1 v1 v2 1k
D1 v2 v3 DMOD
D2 v2 v1 DMOD
.MODEL DMOD D Is=1.0e-15 n=1
VVin v1 0 SIN(0 4 1k 0 0)
.end

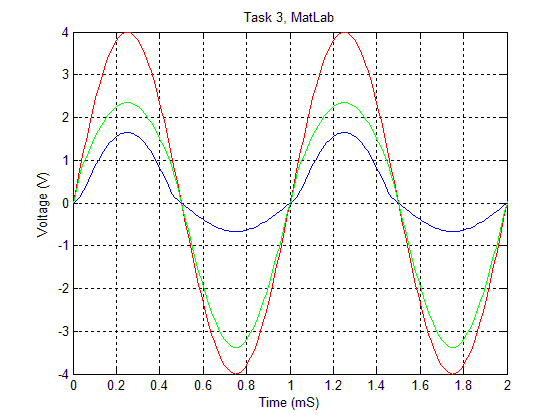

MATLAB ANALYSIS
[ click here for the m-file. ]

task 4

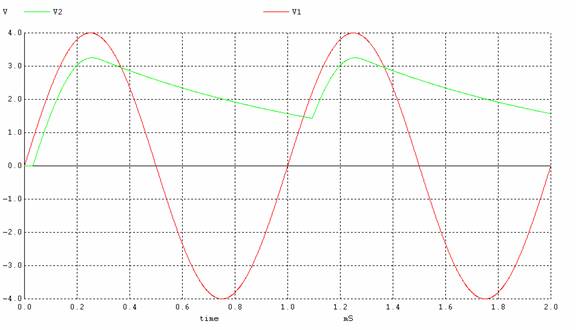

SPICE ANALYSIS
.control
destroy all
echo
TRAN 0.001m 2m
plot V1 V2
.endc
*These next lines give circuit layout (netlist)
R3 v2 0 1k
C1 v2 0 1u
D1 v1 v2 DMOD
.MODEL DMOD D Is=1.0e-15 n=1
VVin v1 0 SIN(0 4 1k 0 0)
.end

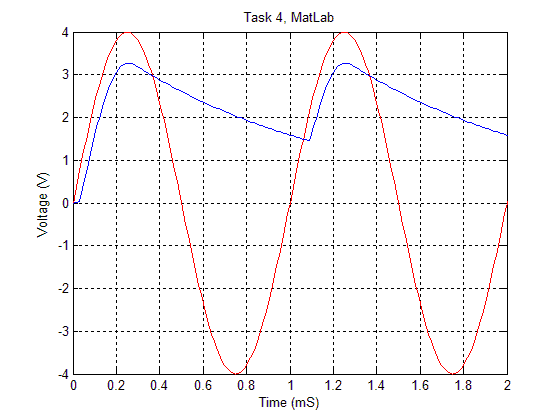

MATLAB ANALYSIS
[ click here for the m-file. ]
|
